SkyFrame PlasticPed

The SkyFrame Pedestal offers a refined, engineered solution for elevated terraces. With smooth height adjustment, robust load capacity, and a lightweight design, it provides a dependable foundation for modern outdoor spaces.

 SkyFrame PlasticPed

Height:

12-281mm

Top Diameter:

155mm

Base Diameter:

200mm

Weight:

0.27-0.81kg

Breaking Load:

15-20KN


REQUEST A SKYFRAME SAMPLE BOX

 SKYFRAME PLASTICPED COMPONANTS

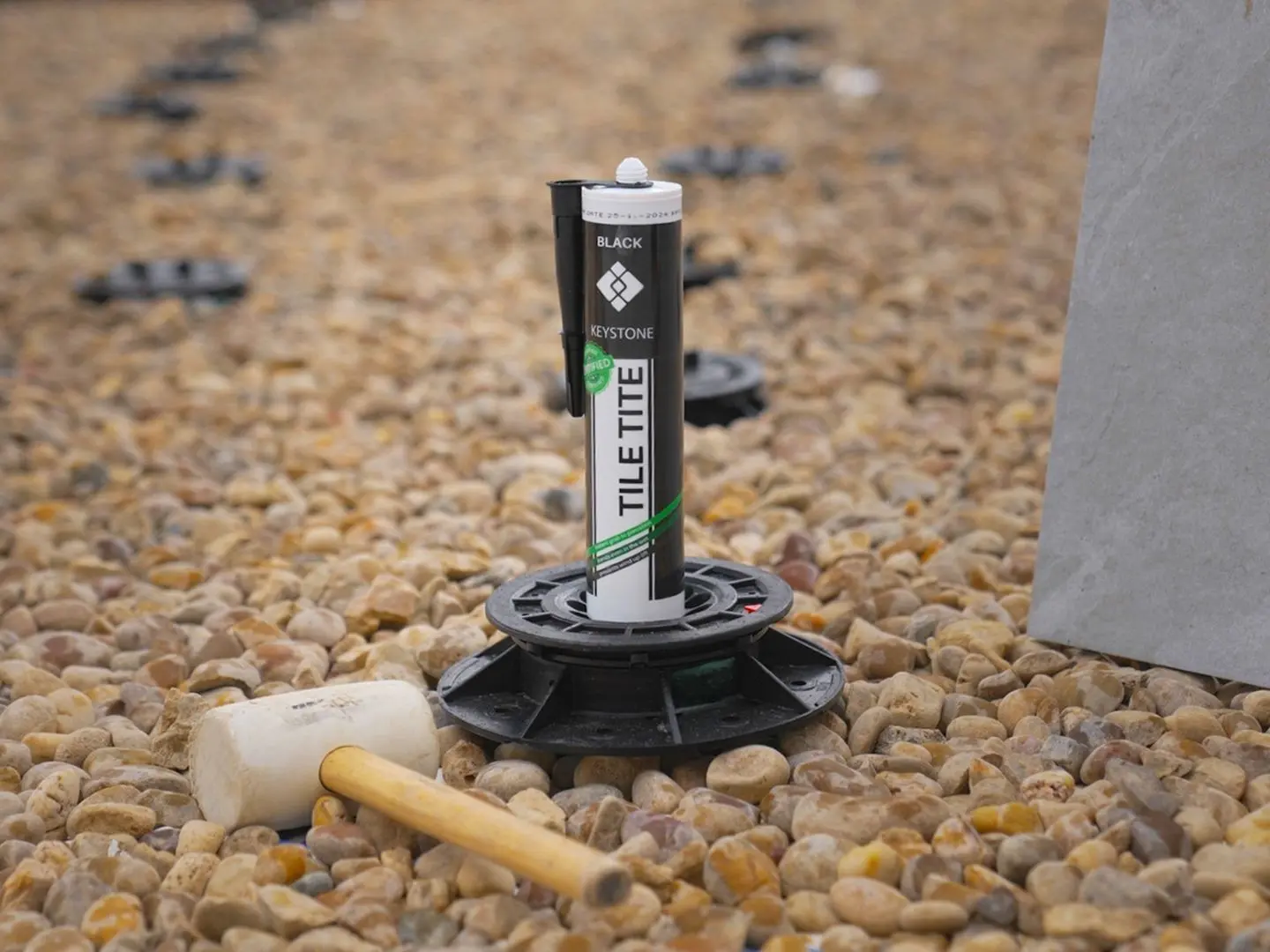

TileTite

TileTite an industry leading innovation, patent pending product that is fixing roof tops in the UK at speed, wind resistant.​

SkyFrame

Bespoke measured Frame to fit your needs on site, from levelling up to steps to pipework, we can work round all obstacles and still have easy install.

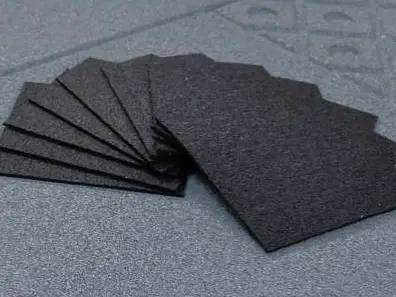

BasePad

A rubber base pad under every metal pedestal to prevent penetration of waterproofing.


DownloadsTechnical SpecificationHeight Range

Downloads

 PlasticPed Technical Data Sheet

Technical Specification

Parameter

Specification

Material

High-density polypropylene

Height Range

40 mm to 220 mm (customizable)

Load Capacity

Up to 1000 kg per pedestal

Base Diameter

200 mm

Head Diameter

120 mm

Temperature Range

-30°C to +80°C

UV Resistance

Yes

Chemical Resistance

Yes

Height Range

Height Range

SkyFrame Code

40 mm - 70 mm

SF-PED-40-70

70 mm - 120 mm

SF-PED-70-120

120 mm - 170 mm

SF-PED-120-170

170 mm - 220 mm

SF-PED-170-220

220 mm - 270 mm

SF-PED-220-270

270 mm - 320 mm

SF-PED-270-320

320 mm - 370 mm

SF-PED-320-370

370 mm - 420 mm

SF-PED-370-420

420 mm - 470 mm

SF-PED-420-470
